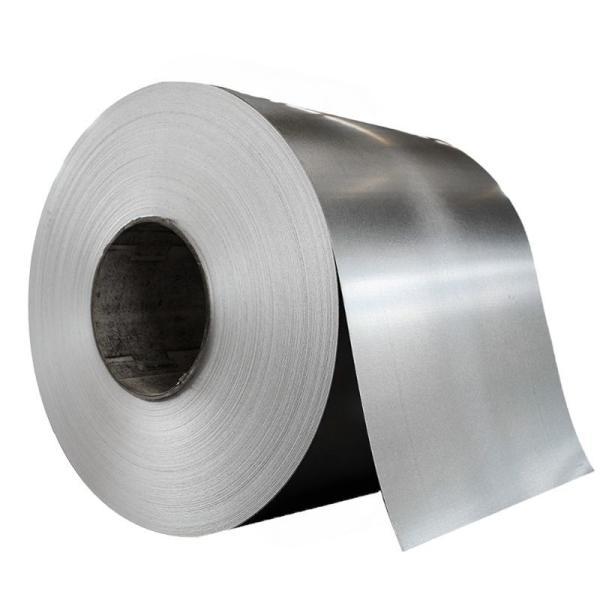

Galvanized Corrugated Steel Roofing Sheet Coils Metal Zinc Z60 Color Coated Prepainted

Ask Lasest Price
Brand Name :	Vespolari Jiangsu
Certification :	ISO SGS ROHS
Price :	Negotiable
Payment Terms :	TT L/C
Supply Ability :	10000000per month
Delivery Time :	7-14 business days

Add to Cart

Product Details
Company Profile

Galvanized Corrugated Steel Roofing Sheet Coils Metal Zinc Z60 Color Coated Prepainted

Metal Sheet Zinc Z60 Color Coated Prepainted Galvanized Corrugated Steel Sheet Roofing Sheet

Technical Standard	EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Steel Grade	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Type	Coil/Sheet/Plate/Strip
Thickness	0.12-6.00mm, or customer's requirement
Width	600mm-1500mm, according to customer's requirement
Type of Coating	Hot Dipped Galvanized Steel(HDGI)
Zinc Coating	30-275g/m2
Surface Treatment	Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface Structure	Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Quality	Approved by SGS, ISO
Coil Weight	3-20 metric ton per coil
Package	Water-proof paper is inner packing, galvanized steel or coated steel sheet is outer packing, side guard plate, then wrapped by seven steel belt. or according to customer's requirement

Chemical Composition
Grade	C≤	Si≤	Mn≤	P≤	S≤	Ni	Cr
201	0.15	1.00	5.50-7.50	0.500	0.03	3.50-5.50	16.00-18.00
202	0.15	1.00	7.50-10.00	0.500	0.03	4.00-6.00	17.00-19.00
304	0.08	1.00	2.00	0.045	0.03	8.00-11.00	18.00-20.00
304L	0.03	1.00	2.00	0.045	0.03	8.00-12.00	18.00-20.00
309	0.20	1.00	2.00	0.040	0.03	12.00-15.00	22.00-24.00
309S	0.08	1.00	2.00	0.045	0.03	12.00-15.00	22.00-24.00
310	0.25	1.00	2.00	0.040	0.03	19.00-22.00	24.00-26.00
310S	0.08	1.00	2.00	0.045	0.03	19.00-22.00	24.00-26.00
316	0.08	1.00	2.00	0.045	0.03	10.00-14.00	16.00-18.00
316L	0.03	1.00	2.00	0.045	0.03	10.00-14.00	16.00-18.00
316Ti	0.08	1.00	2.00	0.045	0.03	10.00-14.00	16.00-18.00
410	0.15	1.00	1.00	0.040	0.03	0.60	11.50-13.50
430	0.12	0.12	1.00	0.040	0.03	0.60	16.00-18.00

Surface Finish of Stainless Steel Coil
Surface Finish	Definition	Application
No.1	The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling.	Chemical tank, pipe
2B	Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.	Medical equipment, Food industry, Construction material, Kitchen utensils.
No.4	Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001.	Kitchen utensils, Electric equipment, Building construction.
Hairline	Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size.	Building Construction.
BA/8K Mirror	Those processed with bright heat treatment after cold rolling.	Kitchen utensils, Electric equipment, Building construction.

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.

-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)

-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)

-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Q1:How about the shipping fees?

Shipping costs will depend upon many factors. Express will be the quickest but will be most expensive. Sea freight is ideal for large quantities, but slower. Please contact us for specific shipping quotes, which are dependent upon quantity, weight, mode and destination.

Q2:What are your prices?

Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after you contact us for further information.

Q3:Do you have a minimum order quantity?

Yes, we do have minimum orders for specific international products, please contact us for more information.
